RXm 3/20 - GM
RXm 3/20 - GM - Image 2

RXm 3/20 – GM

282,00 € sisaldab KM
227,42 € (ilma KM-ta)

Laos 7 tk

7 laos

Tehnilised parameetrid:

Tootekood48TXVG13A1
Pikkus (mm)210
Laius (mm)210
Kõrgus (mm)350
Netokaal (kg)15

Toote info

Description

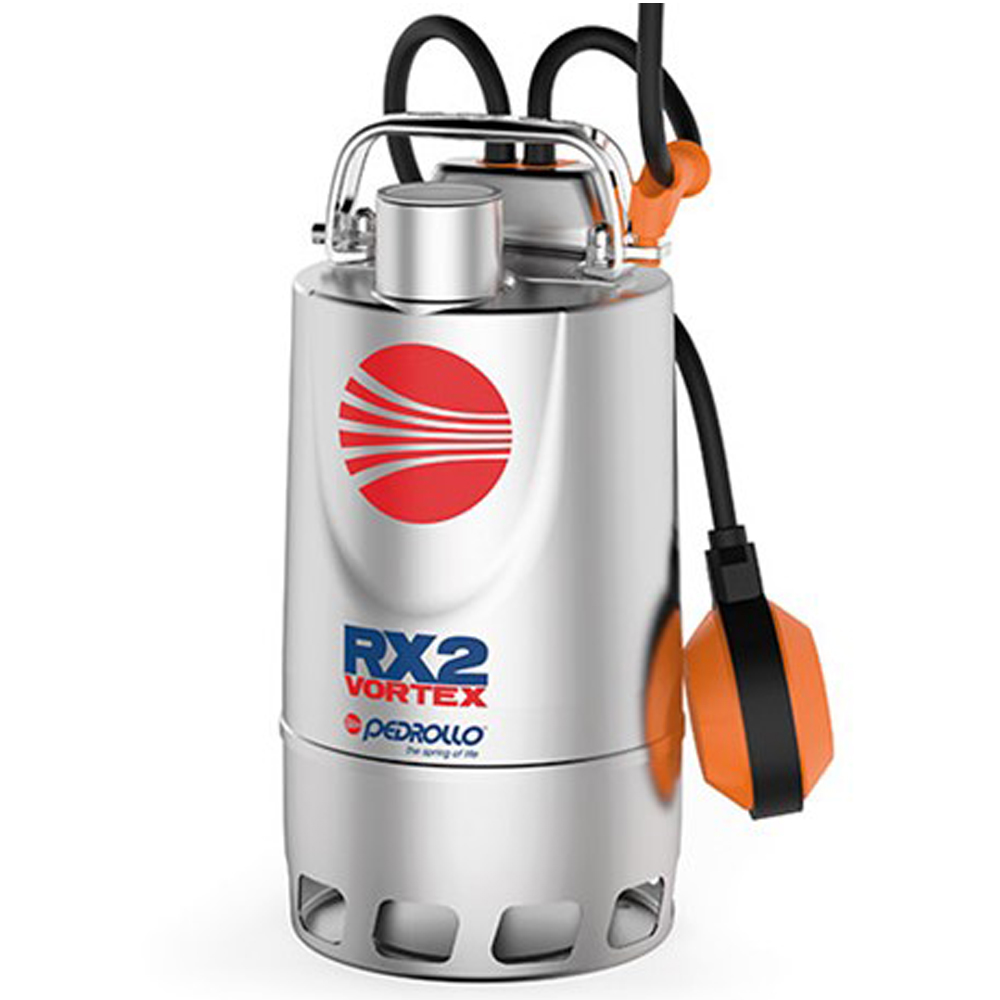

Model: RXm3/20 Vortex (Made in Italy)

Pedrollo submersible drainage pump Vortex: dirty water.

Single phase, 240V.

Descriptions

  • The RX-VORTEX series pumps are suitable for use with dirty water.
  • The design solutions that have been adopted, such as the complete cooling of the motor, guarantee the reliability of the pump.
  • They are suitable for use in domestic applications such as for discharging dirty water containing suspended solids.

Features

  • Liquid type: dirty water
  • Uses: domestic, civil
  • Applications: drainage, dirty water – slightly solid particles, emptying tanks
  • typology: submersible
  • Family: submersible pumps

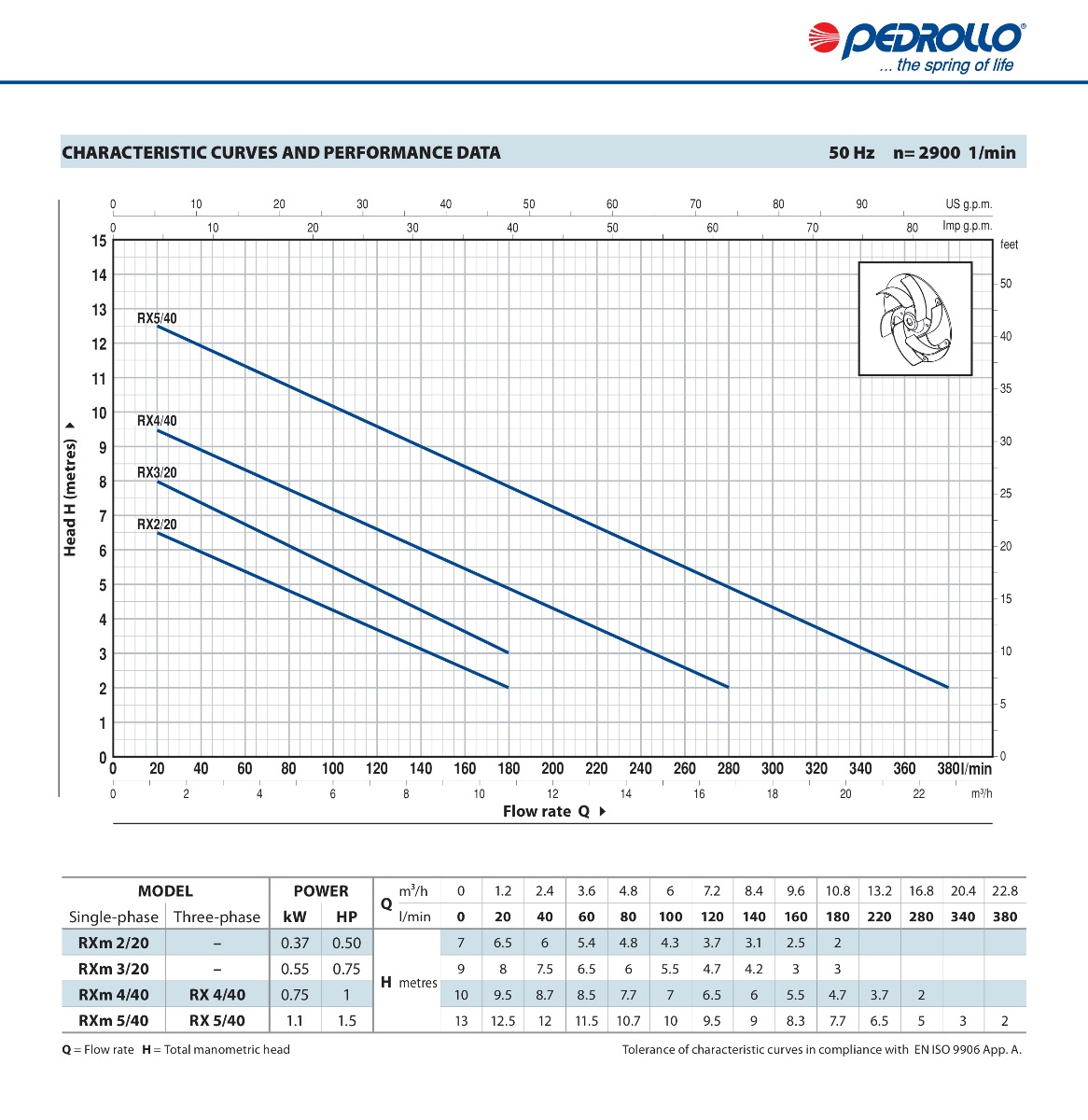

Performance Range

  • Flow rate up to 380 l/min (22,8 m³/h)
  • Head up to 13 m

Application Limit

  • Temperature of the liquid to +40 °C
  • 10 m maximum immersion depth (with a sufficiently long power cable)
  • Solids passage:
    a) up to Ø 20 mm for RX 2/20, RX 3/20
    b) up to Ø 40 mm for RX 4/40, RX 5/40
  • Suction level:
    a) 25 mm above ground level for RX 2/20, RX 3/20
    b) 50 mm above ground level for RX 4/40, RX 5/40
  • Continuous service S1
